config.yaml Reference

This document explains each configuration item in Next Terminal's config.yaml so you can customize deployment behavior safely.

Related docs

• Web Asset (Reverse Proxy) Guide

---

Database

This section controls data persistence.

Database:
  Enabled: true
  Type: postgres
  Postgres:
    Hostname: localhost
    Port: 5432
    Username: next-terminal
    Password: next-terminal
    Database: next-terminal
  ShowSql: false

• Enabled: Enable database support. Default is true.
• Type: Database type. Currently only postgres is supported.
• Postgres: PostgreSQL connection settings.
  • Hostname: Host address.
  • Port: Port number.
  • Username: Username.
  • Password: Password.
  • Database: Database name.
• ShowSql: Whether to print executed SQL statements in logs for debugging. Default is false.

---

Log

Manages system log output.

Log:
  Level: debug # log level: debug,info,warning,error
  Filename: ./logs/nt.log

• Level: Log level. Supported values: debug, info, warning, error.
• Filename: Path of the log file.

---

Server

Core web service settings.

Server:
  Addr: "0.0.0.0:8088"

• Addr: Listening address and port for the web admin UI.

---

App

Contains multiple core functional settings.

Website

• AccessLog: Access log path for Web Assets.

Website:
  AccessLog: "./logs/access.log"

Recording

Controls storage for SSH/RDP session recordings.

Recording:
  Type: "local" # recording storage type: local, s3
  Path: "/usr/local/next-terminal/data/recordings"
#    S3:
#      Endpoint: "127.0.0.1:9000"
#      AccessKeyId: minioadmin
#      SecretAccessKey: miniopassword
#      Bucket: recording
#      UseSSL: false

• Type: Recording storage backend.
  • local: Save on local filesystem.
  • s3: Save to an S3-compatible object storage (MinIO, Alibaba OSS, etc.).
• Path: Local recording directory when Type is local.
• S3: S3 connection settings when Type is s3.

Guacd

Connection settings for Guacamole Server, the core component for graphical protocols such as RDP/VNC.

Guacd:
  Drive: "/usr/local/next-terminal/data/drive"
  Hosts:
    - Hostname: guacd
      Port: 4822
      Weight: 1

• Drive: Virtual drive path for Guacd, used for features like RDP file transfer.
• Hosts: Guacd instance list. Multiple instances are supported for load balancing.
  • Hostname: Hostname or IP of Guacd service.
  • Port: Guacd port. Default is 4822.
  • Weight: Load balancing weight.

ReverseProxy

Enables and configures Web Asset reverse proxying.

ReverseProxy:
  Enabled: true
  HttpEnabled: true
  HttpAddr: ":80"
  HttpRedirectToHttps: true
  HttpsEnabled: true
  HttpsAddr: ":443"
  SelfProxyEnabled: true
  SelfDomain: "nt.example.com"
  Root: ""
  IpExtractor: "direct"
  IpTrustList: []
  MTLSClientCertAuthMode: "strict"

• Enabled: Enable reverse proxy feature.

• HttpEnabled: Enable HTTP listener.

• HttpAddr: HTTP listening address and port.

• HttpRedirectToHttps: Force redirect all HTTP requests to HTTPS.

• HttpsEnabled: Enable HTTPS listener.

• HttpsAddr: HTTPS listening address and port.

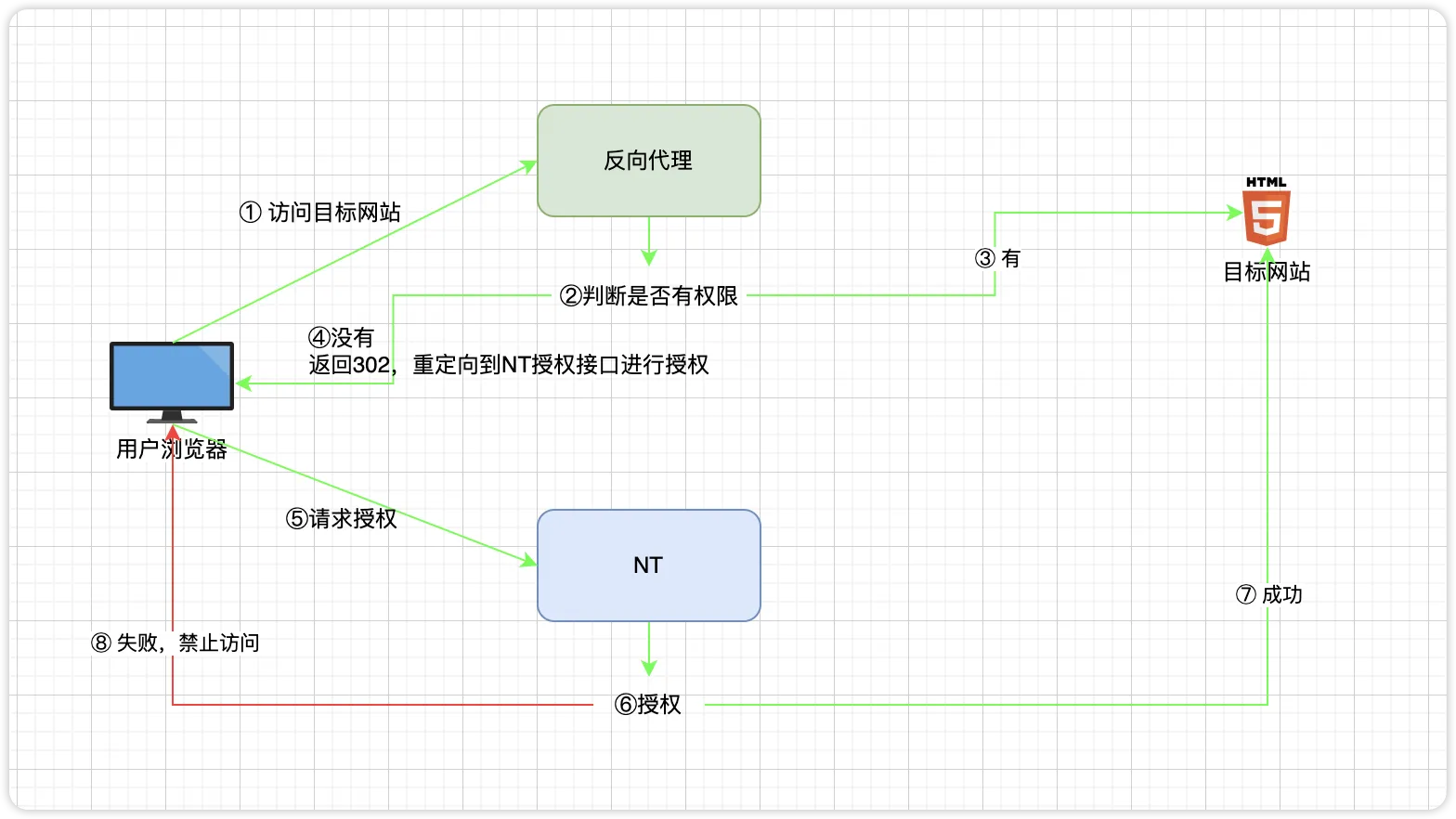

• SelfProxyEnabled, SelfDomain, Root: These three settings control login redirection when users access protected websites. See the Web Asset guide for details.

• IpExtractor / IpTrustList: Identify the real client IP for the Web asset reverse proxy. IpExtractor accepts direct, x-forwarded-for, or x-real-ip; IpTrustList is a list of trusted proxy IPs / CIDRs (leave empty to use the built-in private-range trust list). See Get the Real Client IP for full usage.

  ⚠ These two fields only affect the Web asset reverse proxy

  IpExtractor and IpTrustList only drive IP extraction for the Web asset reverse proxy (access logs, temporary allowlist, public access IP rules, etc.).

  IP extraction for the NextTerminal admin UI (login logs, IP-based login lockout, security audit, etc.) is not configured in config.yaml — set it in Admin UI → System Settings → Network Settings.

• MTLSClientCertAuthMode: Client certificate authentication mode — strict / ca_only, supported since v3.2.0

  • strict validates the client certificate fingerprint and expiration
  • ca_only only validates that the certificate is issued by the same CA
